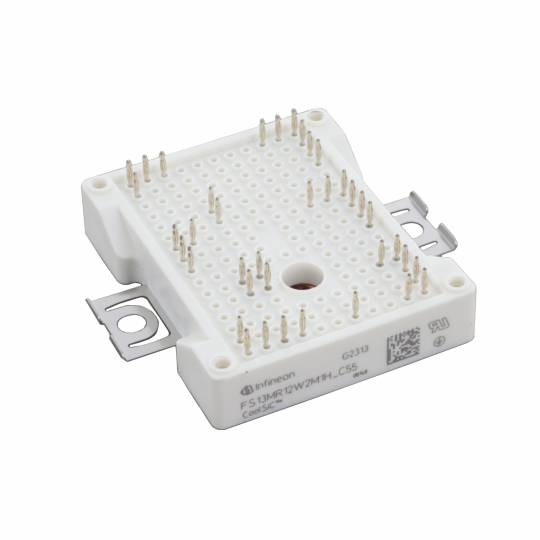

IGBT FS13MR12W2M1HB70BPSA1

Features

• Electrical features

- VDSS = 1200 V

- IDN = 63 A / IDRM = 125 A

- Low switching losses

- Low inductive design

• Mechanical features

- PressFIT contact technology

- AlN substrate with low thermal resistance

- Integrated NTC temperature sensor

- Rugged mounting due to integrated mounting clamps

Potential applications

• High-frequency switching application

• Motor drives

• UPS systems

• DC/DC converter

• DC charger for EV

Product validation

• Qualified for industrial applications according to the relevant tests of IEC 60747, 60749 and 60068
